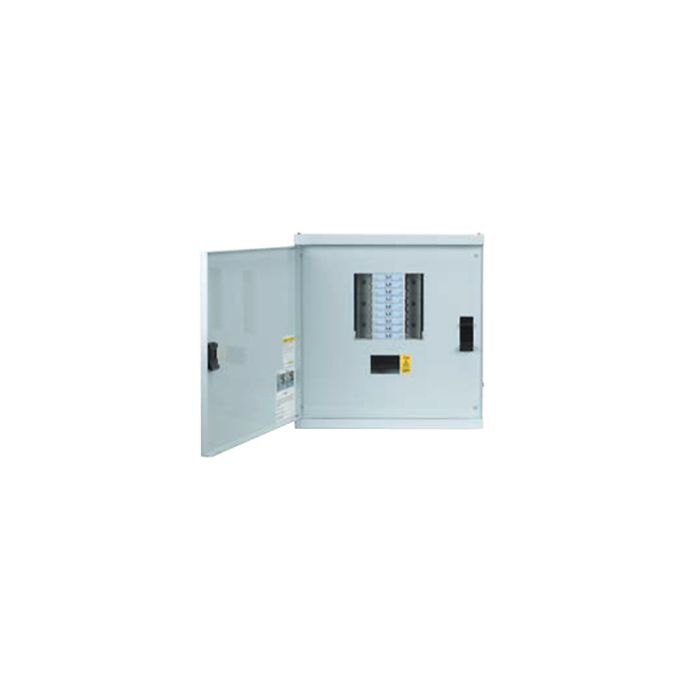

4 TP way type B load centre

AC336742

  • Manufactured to BS EN 61439-2
  • Maximum busbar rating 250A
  • Voltage Rating 400/415V AC
  • External IP3X protection
  • IP2XB finger safe with door and cover removed to BS EN 60529, provided by permanent, non-removable, factory fitted barriers
  • Fully shielded neutral bars
  • Earth and neutral bar cable capacity 25mm²
  • All incoming connections are the same length i.e. 4 pole configuration
  • Range of integral incomers for all applications including lugs, switches, RCCBs and MCCBs
  • Outgoing MCBs available up to 63A B, C or D curves
  • 18mm wide RCBO available, minimising use of outgoing ways
  • Plug-On outgoers for speed of installation and guaranteed connection
  • All B boards accept DIN control products (timers, contactors) in any unused outgoing way without adaptation
  • Control wiring cable way integrated to moulding
  • Distribution Board
More Information
Poles 4 TP
Switching 4 TP way
Type Type B load centre
Flipbook URL Interactive Trade Catalogue
