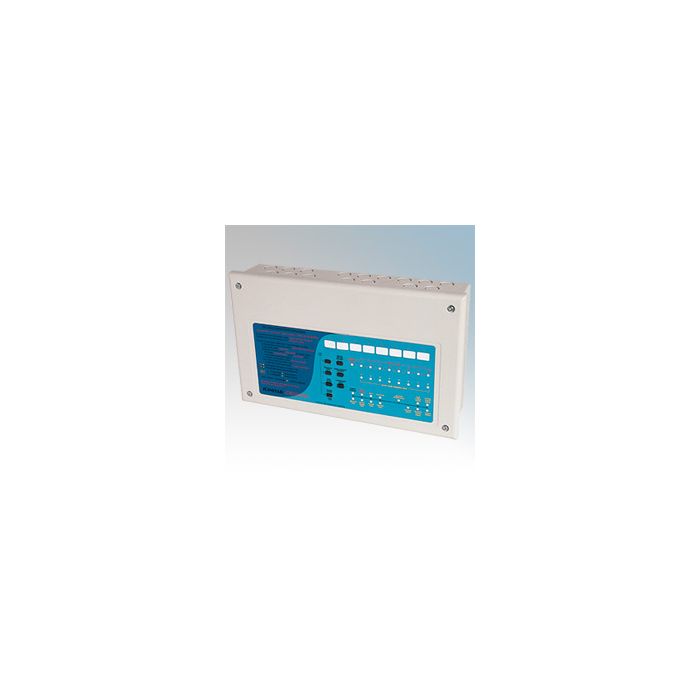

AC5262
- LPCB certified to EN 54 Parts 2/5
- Intuitive user-friendly interface
- Four conventional sounder circuits
- Integral 1.5A EN 54-4/A3
- Two on-board relays (Fire and Fault)
- Two open-collector outputs (Remote and Reset)
- Class change and alert inputs
- Installer-friendly design accommodates easy first fix and straightforward maintenance
- Attractive flush or surface mountable plastic lid and enclosure - no bezel required
- Low 25mA quiescent current
- Multiple indicators
- Ancillary system expansion connections provided for up to eight two-wire repeaters (one network driver card required per system)
- Space for two x 12V 3.0Ah VRLA batteries
- Batteries are not included - all panels require 2 x AC5452 to operate
- Full range of fire alarm equipment
| Colour | Grey |
|---|---|
| Depth | 96 mm |
| Ip rating | IP30 |
| Length | 380 mm |
| Material | Plastic |
| Width | 235 mm |
| Flipbook URL | Interactive Trade Catalogue |
| Current rating | 1.5 A |
| Mounting type | Flush/Surface |
| Product weight | 1.75 kg |
