AC336743

• Manufactured to BS EN 61439-3
• Maximum busbar rating 250A
• Voltage Rating 400/415V AC
• External IP3X protection
• IP2XB finger safe with door and cover removed to BS EN 60529, provided by permanent, non-removable, factory fitted barriers
• Fully shielded neutral bars
• Earth and neutral bar cable capacity 25mm²
• All incoming connections are the same length i.e. 4 pole configuration
• Range of integral incomers for all applications including lugs, switches, RCCBs and MCCBs
• Outgoing MCBs available up to 63A B, C or D curves
• 18mm wide RCBO available, minimising use of outgoing ways
• Plug-On outgoers for speed of installation and guaranteed connection
• All B boards accept DIN control products (timers, contactors) in any unused outgoing way without adaptation
• Control wiring cable way integrated to moulding

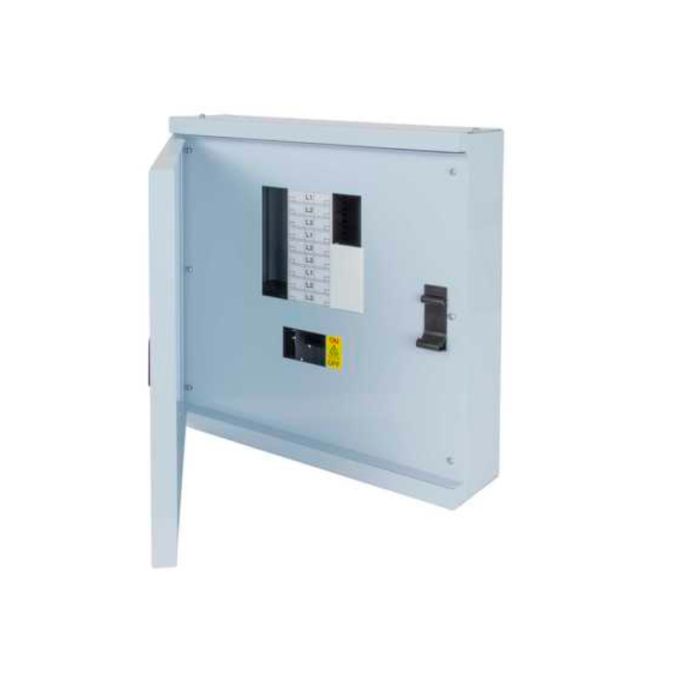

• Distribution Board
