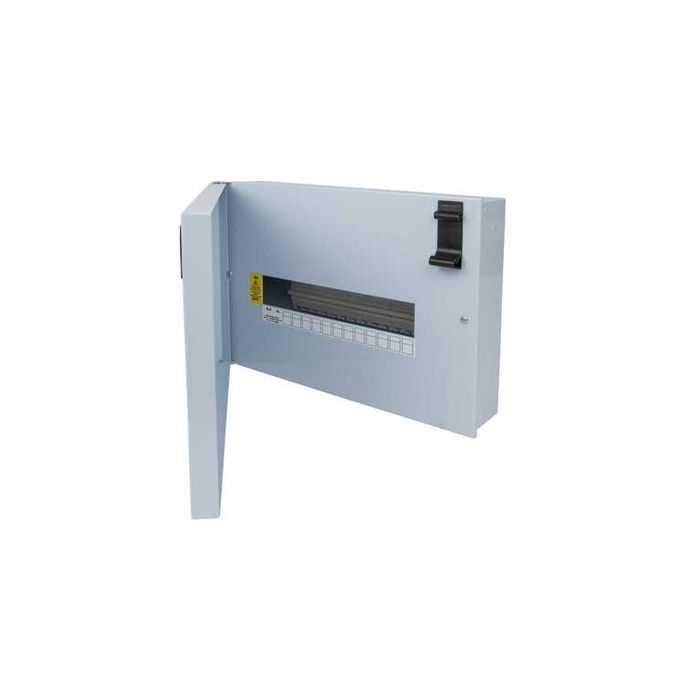

A Type Standard Distribution Board - 8 SP way

Back

Tested to BS EN 61439-4
Maximum busbar rating 125A
Voltage rating 230/240V AC
External IP3X protection BS EN60528
Internal IP2XB protection to BS EN 60529 provided by permanent, non-removable, factory fitted barriers
Shielded neutral bars
Cable knockouts on all sides for speed of installation
Earth bar capacity 25mm°
Neutral bar capacity 25mm°
Wide range of bolt-on incomers, Plug-On outgoers
All A boards accept DIN control products (e.g. contactors, time clocks), in any unused outgoing way without adaptation
Distribution Board

More Information
Poles	8 SP
Type	Type A Distribution board
