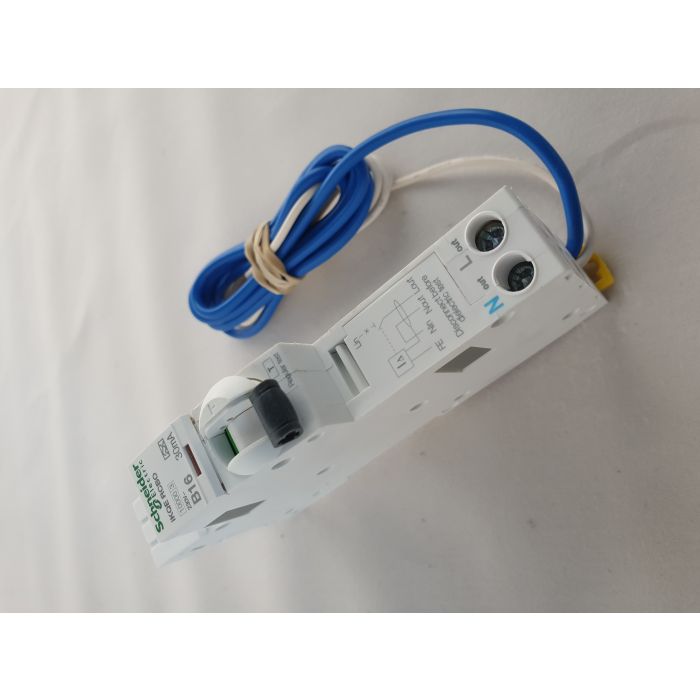

B Curve RCBOs - 30mA - RCBO 1PPNs 16A B 30mA

Back

B Curve RCBOs - 30mA - RCBO 1PPNs 16A B 30mA

AC336851

  • Manufacturedto BS EN 60921
  • 10kA breaking capacity
  • Let through energy classification 3
  • Guaranteed on/off indication
  • Trip-free MCB mechanism
  • Lockable in the ON or OFF position
  • Automatic trip on loss of neutral
  • Automatic protection against reverse polarity
  • Type B characteristics
  • Operating voltage 150 - 230V AC
  • 6 - 45A; 10, 30 and 100mA sensitivities
  • AC class sensitivity
  • One single pole way occupied in a distribution board ideal for retrofitting earth fault protection
  • Cable capacity 16mm²
  • Speed of connection of Plug-On devices
  • Type B RCBO
More Information
Amps 16A
Poles 1PPNs
Type RCBO A-type
Flipbook URL Interactive Trade Catalogue
