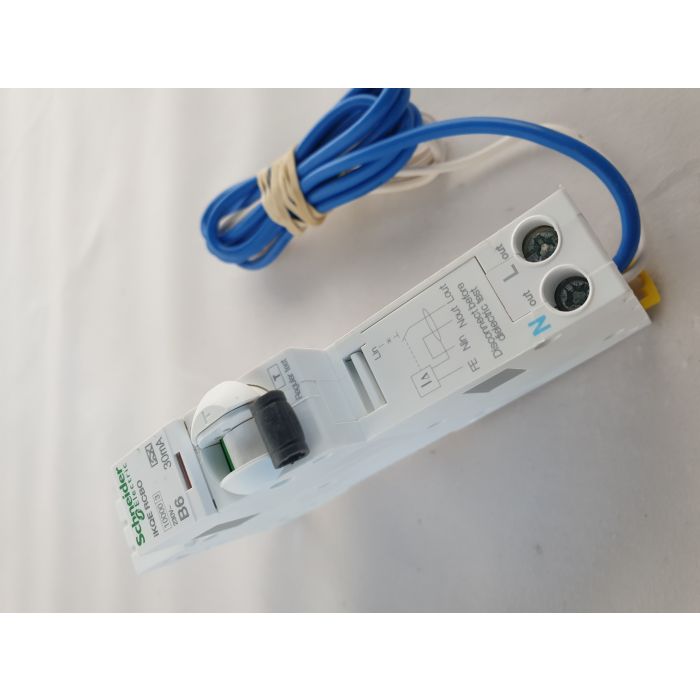

B Curve RCBOs - 30mA - RCBO 1PPNs 6A B 30mA

Back

Manufacturedto BS EN 60919
10kA breaking capacity
Let through energy classification 3
Guaranteed on/off indication
Trip-free MCB mechanism
Lockable in the ON or OFF position
Automatic trip on loss of neutral
Automatic protection against reverse polarity
Type B characteristics
Operating voltage 150 - 230V AC
6 - 45A; 10, 30 and 100mA sensitivities
AC class sensitivity
One single pole way occupied in a distribution board ideal for retrofitting earth fault protection
Cable capacity 16mm²
Speed of connection of Plug-On devices
Type B RCBO

More Information
Amps	6A
Poles	1PPNs
Type	RCBO A-type
