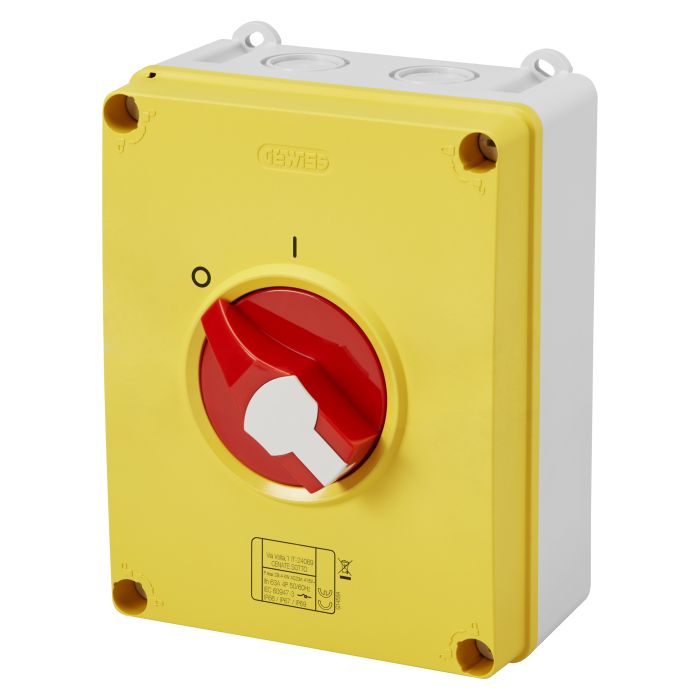

IP69 Rotary Isolator Switches -

Back

IP69 Rotary Isolator Switches -

AC3189

  • IP66/67/69 rated
  • IK08 impact resistance
  • Flame retardant
  • AC23 rated - for all load types
  • M20/M25 knockouts on the top and bottom faces
  • Quarter turn captive screws for quick access
  • Surface mounting with integrated mounting brackets
  • Large enclosure sizes for easy wiring
  • Padlockable in the off position with provision for 3 locks
  • Supplied with earthing terminal
  • Can be fitted with 2 auxiliary contacts
  • Rotary Isolators
  • Protection against submersion and hot water jets
More Information
Depth 111.8mm
Height 200mm
Switch rating 63A 3 Pole
Width 156mm
