AC36938

• Rated for 240/415V 50/60Hz
• AC23A for ratings up to 160A
• Provides positive contact indication
• Padlockable in ON and OFF positions
• Door handle prevents door being opened when switch is ON or padlocked
• Device may be fed to either top or bottom terminals
• Fuse links or copper links supplied as standard construction
• All terminals are fully shrouded
• Quick make and break silver plated contacts
• Door interlock has defeat mechanism allowing switch to be closed with door open
• Removable plain gland plates are fitted at top and bottom
• Cabling space may be increased by the addition of the cable boxes
• Lift off door provides greater access for installation and cabling
• Door opens within the width of the unit allowing units to be mounted adjacent
• Neutral is fitted with disconnectable links
• Earthing kit provided as standard
• Easy access to fuse links
• Removable cross rails allow cables to be laid in easily
• Clear shrouds allow easy access for inspection and visual indication of contact position
• Steelwork finished in polyester epoxy powder

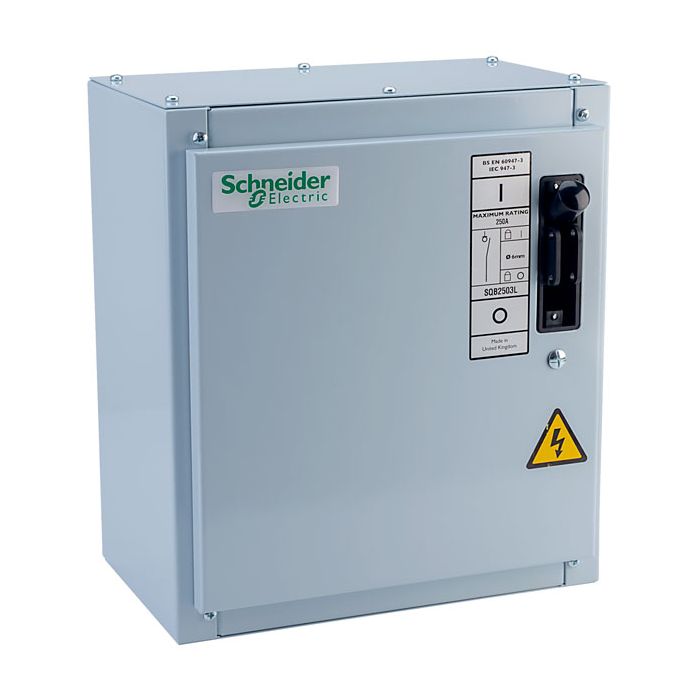

• Switch Disconnector
