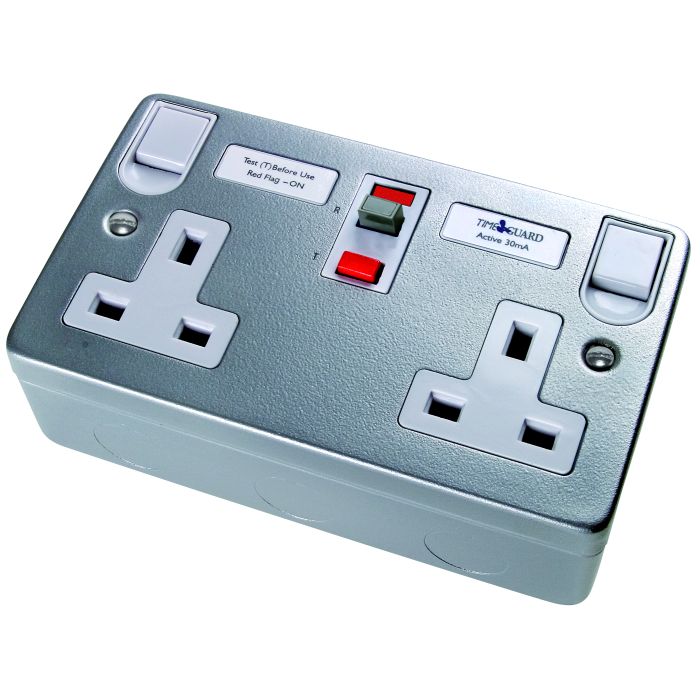

AC1806
- Protects appliances from fire
- Manual reset
- Trips out within 40 milliseconds
- Disconnects Live and Neutral
- Test button for safety checks
- Still protects with lost neutral
- Still protects with pulsating DC earth fault currents
- Supplied with a 40mm BS metal surface wall box
- Complies to BS 7288 - 2016
- AC1806 Non-latching
- Trips out when the power supply is temporarily lost. A safety must for machine tool applications
- Full range of RCD protected accessories
| Depth | 60 mm |
|---|---|
| Finish | Metal |
| Gang | 2 Gang |
| Width | 148 mm |
| Flipbook URL | Interactive Trade Catalogue |
| Current rating | 13 A |
| Mounting type | Surface |
| Number of poles | Single Pole (1P) |
| Voltage rating | 230 V |
| Product weight | 0.513 kg |
