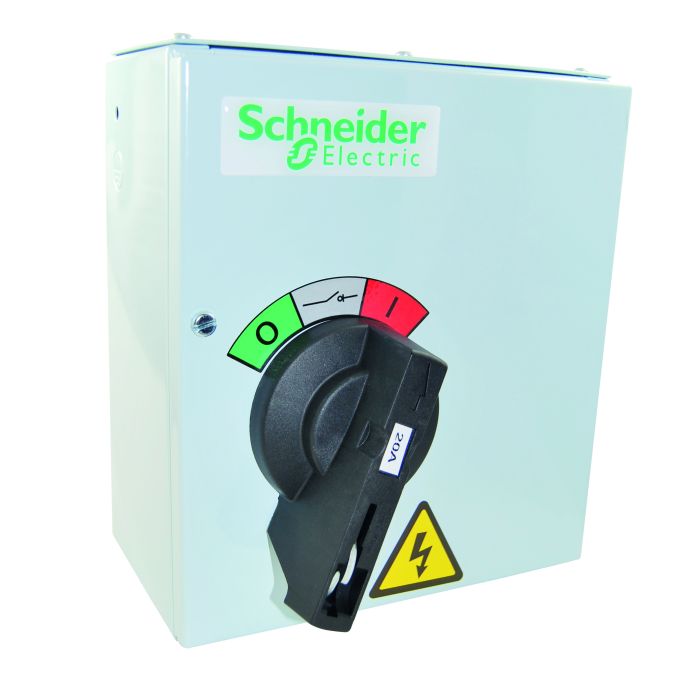

AC36920

• Rated for 240/415V 50/60Hz
• Rating 20A
• AC20A, AC21A, AC22A, AC23B
• Degree of protection IP41
• Handle position provides positive contact indication
• Door handle prevents door being opened when switch is ON or padlocked
• Handle pad lockable in ON and OFF positions
• Fuse links supplied as standard construction
• Live terminals fully shrouded
• Door interlock has integral defeat mechanism allowing door to be opened without switching OFF - this feature is not operable when the handle is padlocked
• Removable gland plates with cable knockouts
• Lift off door provides greater access for installation and cabling
• Door opens within the width of the unit allowing units to be mounted adjacent
• Neutral has disconnectable link and capacity for 3 outgoing cables
• Keyhole slots in the enclosure base allow easy installation
• Earthing kit provided as standard
• Easy access to fuse links
• Steelwork finished in polyester epoxy powder
