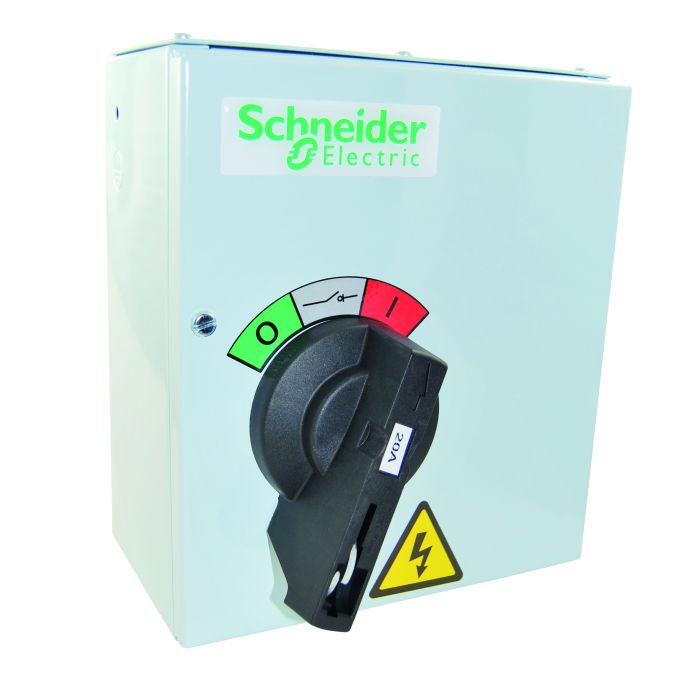

Switch Disconnector - Single Pole - 20A SP & SN

AC36924

  • Rated for 240/415V 50/60Hz
  • Rating 20A
  • AC20A, AC21A, AC22A, AC23B
  • Degree of protection IP41
  • Handle position provides positive contact indication
  • Door handle prevents door being opened when switch is ON or padlocked
  • Handle pad lockable in ON and OFF positions
  • Fuse links supplied as standard construction
  • Live terminals fully shrouded
  • Door interlock has integral defeat mechanism allowing door to be opened without switching OFF - this feature is not operable when the handle is padlocked
  • Removable gland plates with cable knockouts
  • Lift off door provides greater access for installation and cabling
  • Door opens within the width of the unit allowing units to be mounted adjacent
  • Neutral has disconnectable link and capacity for 3 outgoing cables
  • Keyhole slots in the enclosure base allow easy installation
  • Earthing kit provided as standard
  • Easy access to fuse links
  • Steelwork finished in polyester epoxy powder
More Information
Amps 20A
Poles SP & SN
Type Switch Disconnector
