AC33892

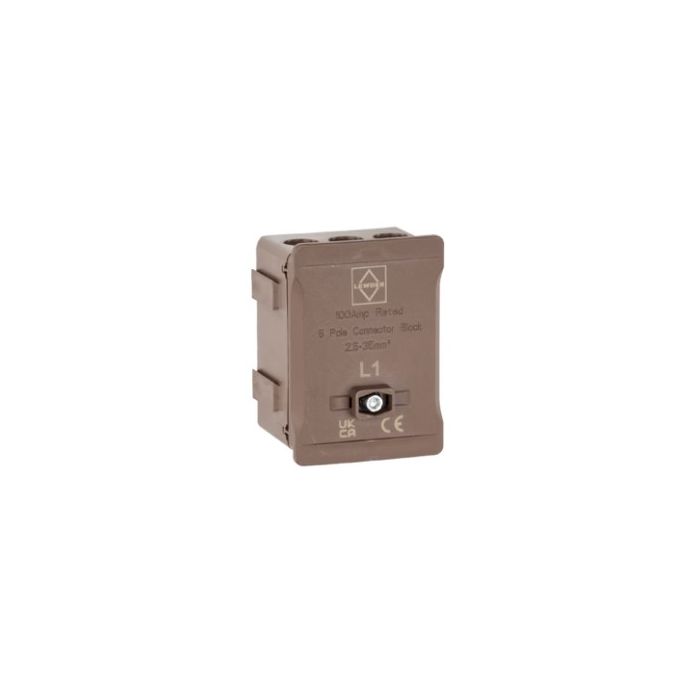

• 5 way single pole terminal block
• Rating: 100A 230VAC
• Can accept up to 5 conductors (2.5-35mm²)
• Top and bottom cable entry points
• Dual screw terminations (4mm allen key) for secure
• connection of conductors
• Terminal tightening torque: 3Nm
• Modular construction – terminal blocks can be close
• coupled for ease of installation
• Secure cover (3mm allen key) with wire locking capability
• Retained shutters for blanking of unused cable entries
• 960°C glow wire tested
• Ingress protection: IP20
• Applicable standards: BS EN60998-1 / BS EN 60998-2-1
