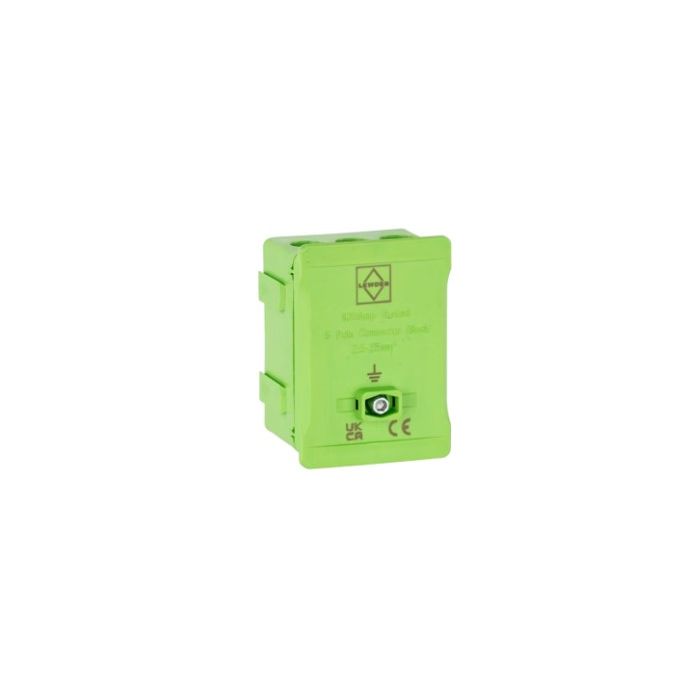

Terminal block 5-way 100A green

Back

Terminal block 5-way 100A green

AC33893

  • 5 way single pole terminal block
  • Rating: 100A 230VAC
  • Can accept up to 5 conductors (2.5-35mm²)
  • Top and bottom cable entry points
  • Dual screw terminations (4mm allen key) for secure
  • connection of conductors
  • Terminal tightening torque: 3Nm
  • Modular construction – terminal blocks can be close
  • coupled for ease of installation
  • Secure cover (3mm allen key) with wire locking capability
  • Retained shutters for blanking of unused cable entries
  • 960°C glow wire tested
  • Ingress protection: IP20
  • Applicable standards: BS EN60998-1 / BS EN 60998-2-1
